RALPH ENGELSTAD ARENA – UNIVERSITY OF NORTH DAKOTA

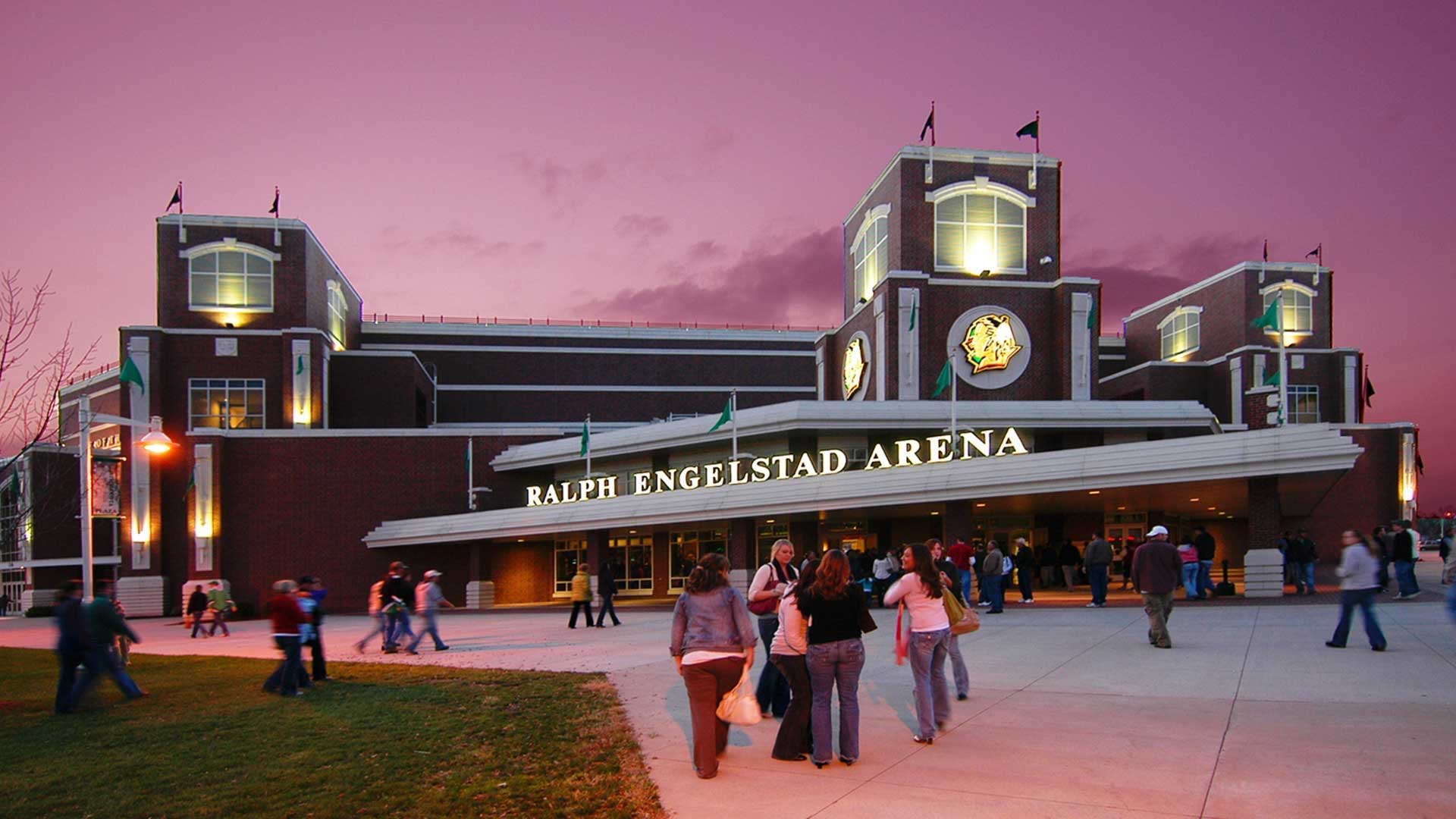

Ralph Englestad - Exterior

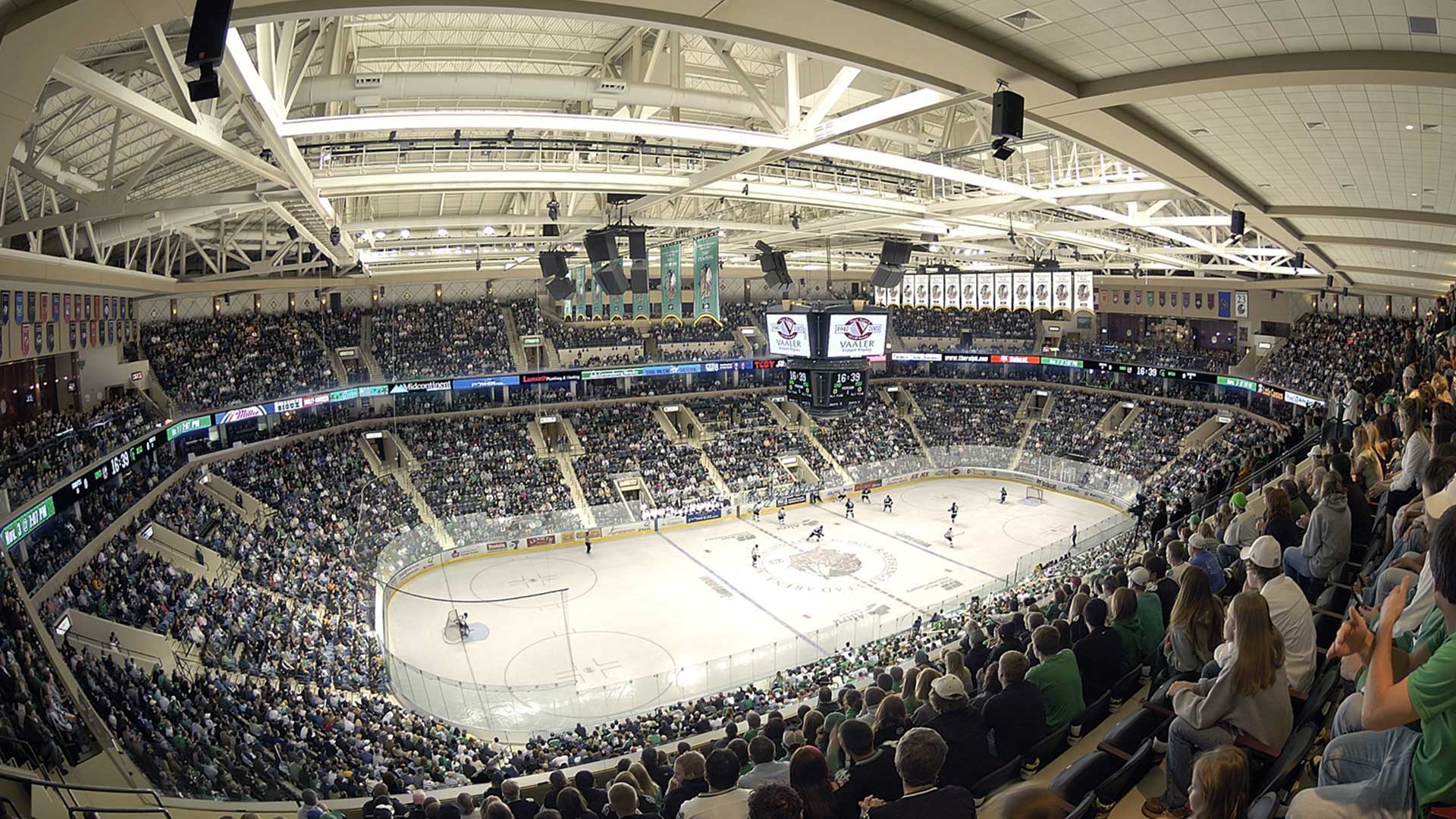

Ralph Englestad - Arena

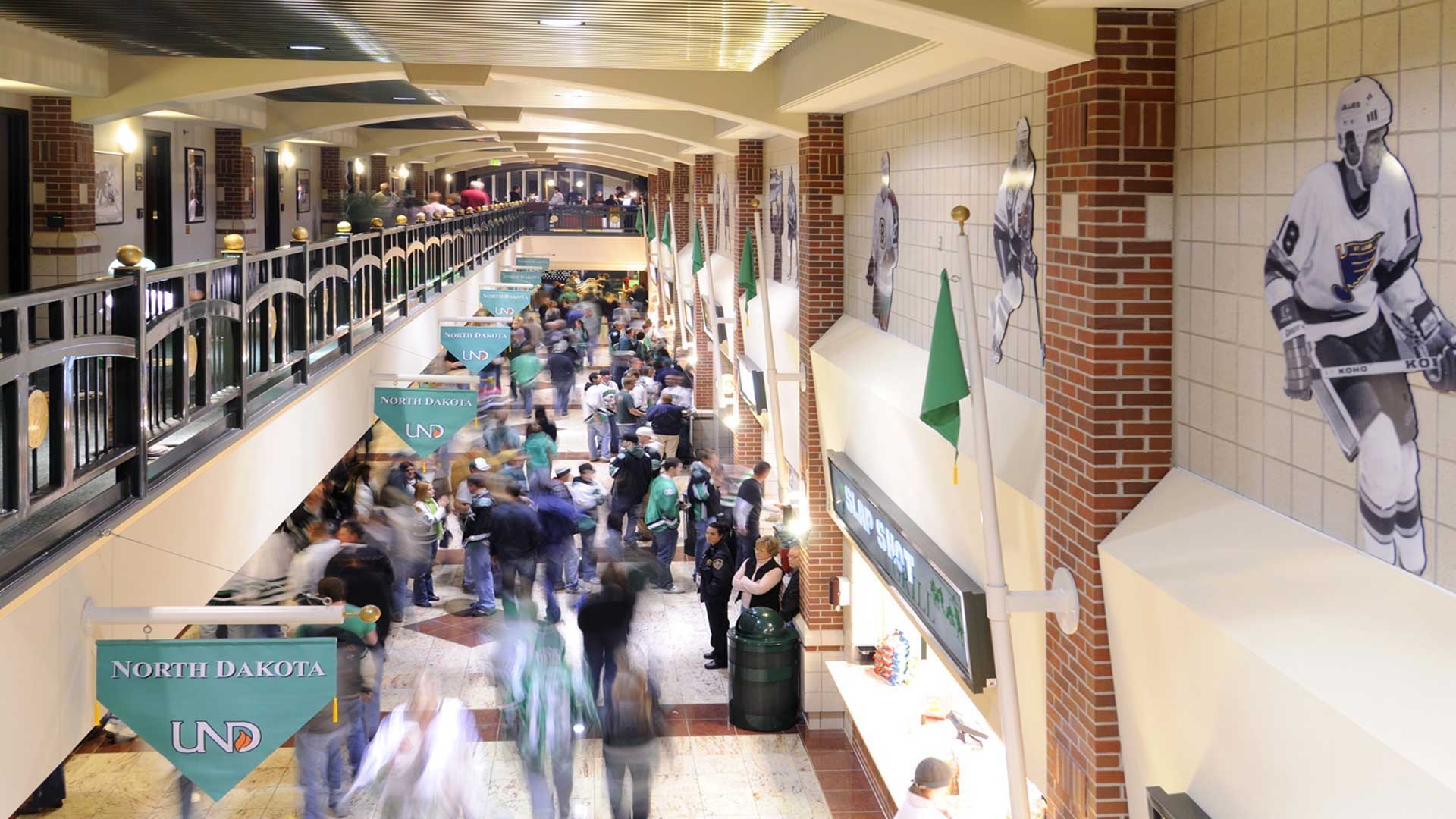

Ralph Englestad - Hallway
Ralph Englestad – Exterior
Ralph Englestad – Arena
Ralph Englestad – Hallway
previous arrow
next arrow
Ralph Englestad - Exterior
Ralph Englestad - Arena
Ralph Englestad - Hallway
previous arrow
next arrow

Location: Grand Forks, ND
Project Size: 400,000 SF

Project Cost: $103 Million
Completion Date: 2001

View Case Study

The “Ralph” is the home of the University of North Dakota Division I Hockey team. A total seating capacity of 11,560 surrounds the regulation sized ice sheet. This state-of-the-art facility includes forty-four luxury suites, four party suites, and two club rooms with a capacity of 120 in each.

The building is constructed with a structural steel frame supporting 5 floors of cast-in-place concrete on metal decking. The roof is framed of large structural steel fabricated trusses that clear span the arena and support bar joists and metal deck roof. Due to heavy building loads and soft soils a driven steel pile deep foundation system was selected to support the structure. The exterior walls consist of precast concrete wall panels with inlaid brick to expedite the installation. The roof structure is designed to support the 50,000 lbs. center-hung score board (the largest in college hockey) as well as large rigging loads for concerts.
